产品名称:嵌入式USB2.0转接卡
型  号:HT-210VIA

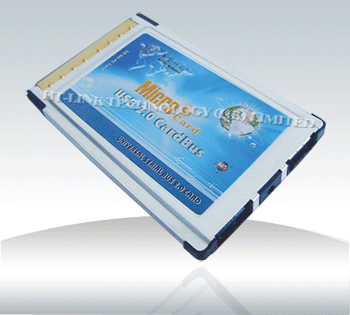

 点击查看大图片

CardBus USB Adapter is fully functional USB2.0 Host Controller CardBus PC Card, which supports High-Speed, Full-Speed and Low-Speed operation, and follows the Enhanced Host Controller Interface (EHCI) specification Rev.1.0.

Product: CardBus To USB2.0 Adapter
Model: HT-210VIA
Chip: VIA
Interface: CardBus
Port: 2 Internal Type A USB Ports
Weight: 30g
Dimension: 54*85.6*5.5mm(2.13 * 3.37* 0.22″)
Manufacturer: Made in China

Features:
1. Easy plug & play connectivity and set-up
2. Supports USB 2.0 devices while being fully backward-compatible with USB 1.1 devices
3. Supports transfer rate of 1.5/12/480Mbps
4. Supports 32 bit CardBus PC Card Type II slot
5. Supports Windows 98SE, ME, 2000 and Windows XP

System Requirements:
1. IBM-Compatible notebook or PC with CardBus-enabled and 266Mhz or faster processor
2. Microsoft Win 98SE, Win ME, Win 2000 and Win XP
3. Available Type-II CardBus PC Card slot
4. CD-ROM drive

System Environment:
1. Operating Temperature: 0°C ~50°C
2. Operating Humidity: 10% ~90%RH
3. Operation Voltage: +3.3V ~+3.0V(+/-5% wide range power supply)
