产品名称:二代CF卡(PCIe)
型  号:HT-E195 JMB 3L

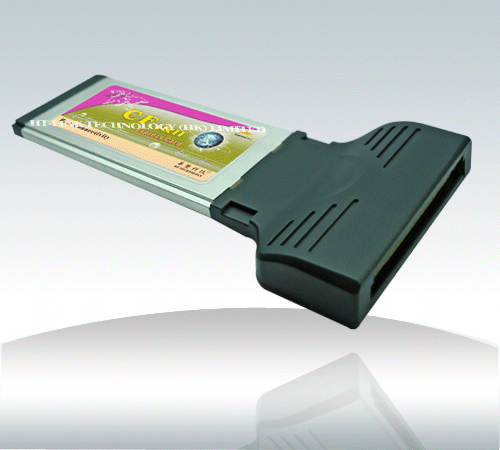

 点击查看大图片

Extreme Speed interface using PCI-e interface--different from other card using poor USB interface.

Product: ExpressCard/34 CF Adapter
Model: HT-E195 JMB 3L
Interface: PCI Express
Weight: 26.7g
Dimension: 54.2 * 110.35 * 10.3mm(2.13 * 4.34* 0.41″)
Manufacturer: Made in China

Features:
1. compliant with CF type I & type II
2. Speed Up to 2.5Gbps PCI Express
3. Hot plug support when ExpressCard-to-CF Adapter bundle with CF card as a removable unit
4. Data transfer speed (sequential read/write) up to 40 Mbps (subject to the max. Speed of CF card)
5. Support PIO mode, and UDMA mode (according to CF Spec. Rev. 4.1)
6. No external power required(Power supply from ExpressCard socket)
7. Support power saving mode to reduce power consumption
8. Fulfill with RoHS

System Requirements:
1. Windows 2000/XP/Vista/7
2. Mac 10.4 and above

System Environment:
1. Operating Temperature: 0°C ~50°C
2. Operating Humidity: 10% ~90%RH
3. Operation Voltage: +3.3V(+/-5% wide range power supply)
