产品名称:并口转接卡
型  号:HT-236
 点击查看大图片

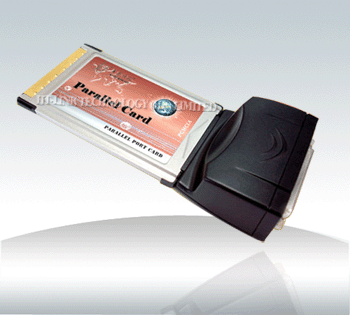

Product: PCMCIA Parallel Port Adapter
Model: HT-236
Interface: CardBus
Port: DB-25 Ports
Weight: 48g
Dimension: 54*118*23mm(2.13*4.66*0.91″)
Manufacturer: Made in China

Features:
1. 32-bit PC Card Compliant
2. 128-byte deep transmitter/receiver FIFO
3. Maximum Data Transfer Rate 1.5Mbps
4. Supports physical port
5. Very low power consumption with industry standard 16C550 type UARTs
6. EPP/ECP Parallel port that fully supports existing Centronics interface
7. Connects any parallel peripheral including printers, scanners, Zip® drives, and other devices.
8. System assigns I/O Address and IRQ automatically to eliminate conflicts
9. It doesn’t support reassign address to ISA 378/278.


System Requirements:
1. Desktop or notebook computer with PCMCIA socket
2. Win 98/98SE, Win Me, Win XP ,W7

System Environment:
1. Operating Temperature: 0°C ~50°C
2. Operating Humidity: 10% ~90%RH
3. Operation Voltage: +3.3V ~+3.0V(+/-5% wide range power supply)
